Create a Logo based Stats Image with Sportmonks’ Football API and Groovy

Sportmonks & Apache Groovy.

Just like we did in the previous episode of our guide using Julia, at the end of this blog post, you’ll have an image showing match stats for any match of your choice.

In the upcoming sections, we’ll walk you through configuring your development environment before making your first call to the API.

As we drill down to stats for a specific fixture, each segment will build on the next, showcasing examples and code snippets.

1.3 Create a Groovy Project.

We installed IntelliJ IDEA earlier on; however, to write and compile Groovy, we must install the required plugin and JDK version in our project.

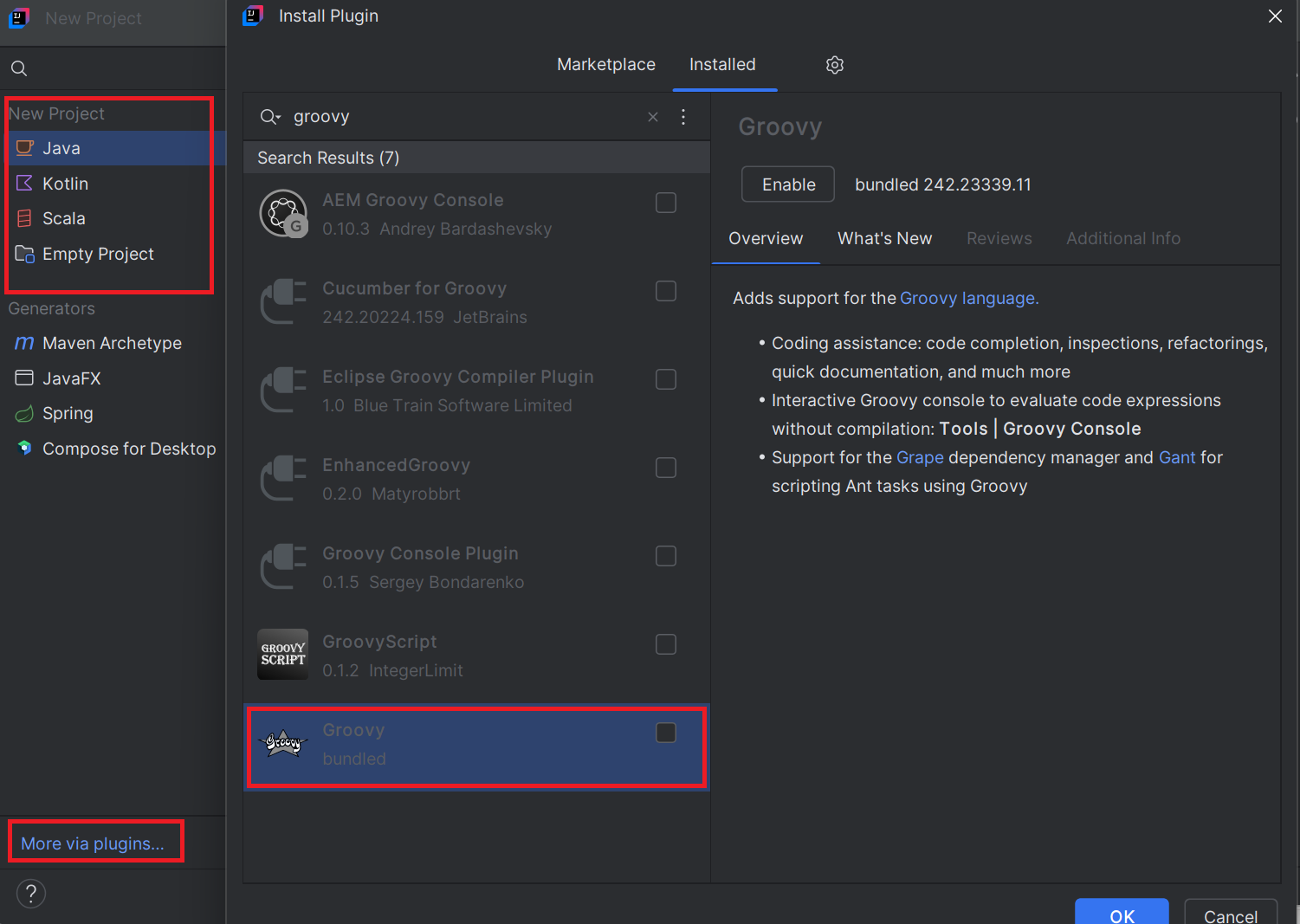

As you can see in the image above, Groovy is not listed on the upper left side of IntelliJ. Search for Groovy via the ‘More via Plugins’ at the bottom left corner and install the plugin. If you encounter any problem, you may visit the official guide for help.

Once done, create a new project following the earlier steps.

Now you will be able to find Groovy on the left-hand side.

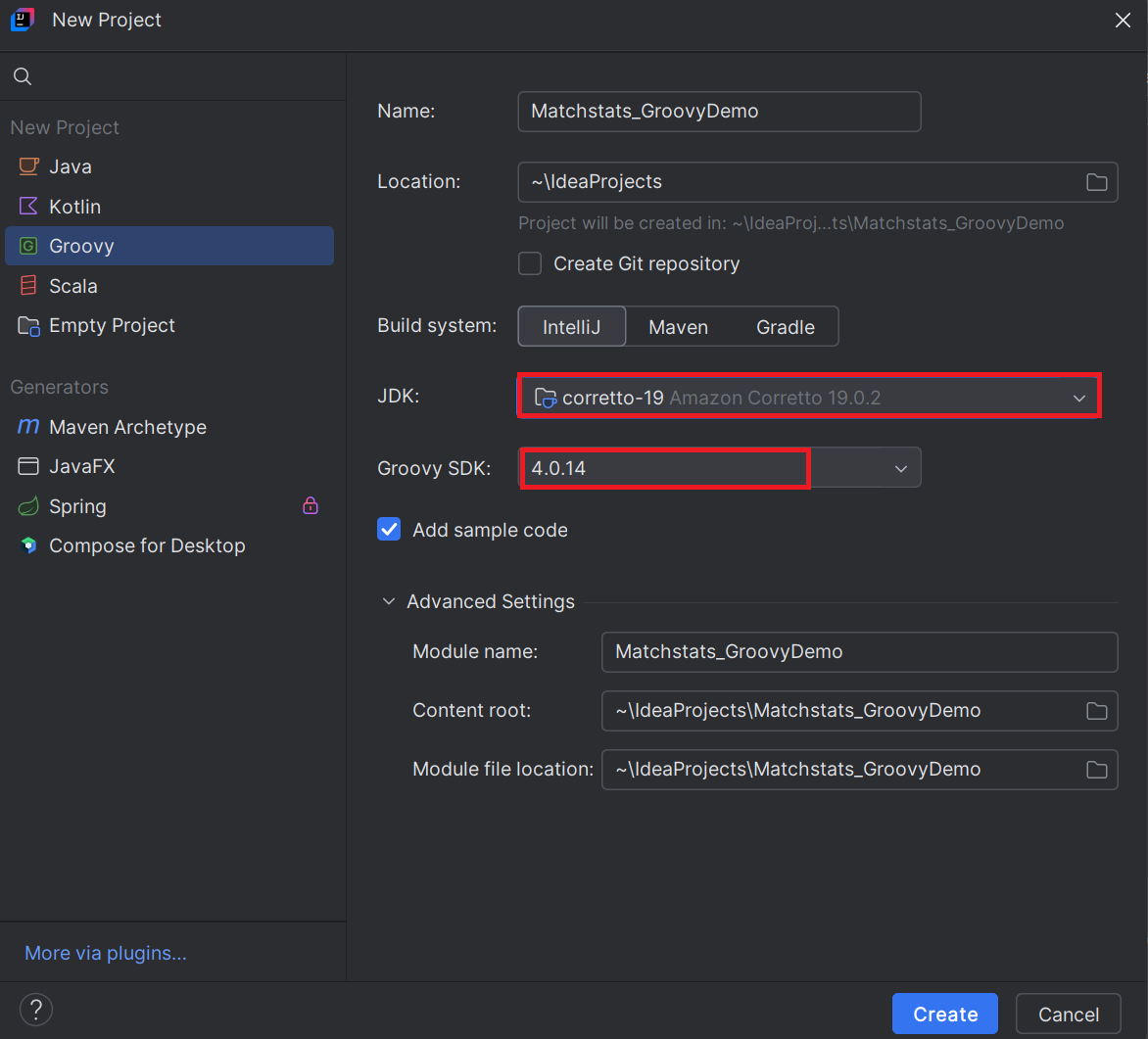

Enter the name of your project. However, an important step is selecting the proper version of Java. This is a common problem which could leave you tearing your hair out.

Groovy might be running on a version of Java which may be incompatible with the libraries or itself; hence, you must use a compatible JDK version. For Groovy 3.x, it requires Java 8-16, while for Groovy 4.x, it is compatible with Java 8-20. This may change in the future depending on the time you are reading this blog post, so always refer to the official help page shared earlier.

At this moment, since our version is Groovy 4.0.14, we will select JDK version 19. Once selected, proceed to have all libraries downloaded and navigate to your Main.groovy file, which comes with the legendary ‘Hello World’ example.

We will replace this sample with another piece of code in the next section.

2.3. Filter Match stats for specific details.

As you can see, we retrieved a lengthy response. However, what do we do if we need to display just a few of them? Using a tool named ‘Filters,’ we can easily narrow down the response to just a few.

By looking through the response, we will filter the response using five different type_ids, namely, 45 [Ball possession], 86 [Shots on Target], 42 [Shots], 80 [Passes], and 56 [Fouls].

We shall append these type_ids, separated by commas, at the end of the previous url in this form: ‘fixtureStatisticTypes:type_id,type_id,…’

https://api.sportmonks.com/v3/football/fixtures/19134600?api_token=API_Token&include=statistics.type&filters=fixtureStatisticTypes:45,86,42,80,56

import groovy.json.JsonSlurper
import groovy.json.JsonOutput
import java.net.HttpURLConnection
import java.net.URL

def fetchData(apiUrl) {
  try {
    // Create a connection to the API URL
    def url = new URL(apiUrl)
    HttpURLConnection connection = (HttpURLConnection) url.openConnection()
    connection.setRequestMethod("GET")
    connection.setConnectTimeout(5000)
    connection.setReadTimeout(5000)

    // Read the response
    def response = connection.inputStream.text

    // Parse the JSON response
    def json = new JsonSlurper().parseText(response)

    // Pretty print the JSON
    def prettyJson = JsonOutput.prettyPrint(JsonOutput.toJson(json))
    println("Data:\n${prettyJson}")

    return json
  } catch (Exception e) {
    println("Error: ${e.message}")
  }
  return null
}

// Provide the API URL
def apiUrl = "https://api.sportmonks.com/v3/football/fixtures/19134600?api_token=API_Token&include=statistics.type&filters=fixtureStatisticTypes:45,86,42,80,56"

// Fetch and pretty print the data
fetchData(apiUrl)

Data:
{
    "data": {
        "id": 19134600,
        "sport_id": 1,
        "league_id": 8,
        "season_id": 23614,
        "stage_id": 77471288,
        "group_id": null,
        "aggregate_id": null,
        "round_id": 339246,
        "state_id": 5,
        "venue_id": 151,
        "name": "Manchester City vs Tottenham Hotspur",
        "starting_at": "2024-11-23 17:30:00",
        "result_info": "Tottenham Hotspur won after full-time.",
        "leg": "1/1",
        "details": null,
        "length": 90,
        "placeholder": false,
        "has_odds": true,
        "has_premium_odds": true,
        "starting_at_timestamp": 1732383000,
        "statistics": [
            {
                "id": 154543270,
                "fixture_id": 19134600,
                "type_id": 56,
                "participant_id": 6,
                "data": {
                    "value": 9
                },
                "location": "away",
                "type": {
                    "id": 56,
                    "name": "Fouls",
                    "code": "fouls",
                    "developer_name": "FOULS",
                    "model_type": "statistic",
                    "stat_group": "defensive"
                }
            },
            {
                "id": 154461825,
                "fixture_id": 19134600,
                "type_id": 42,
                "participant_id": 9,
                "data": {
                    "value": 23
                },
                "location": "home",
                "type": {
                    "id": 42,
                    "name": "Shots Total",
                    "code": "shots-total",
                    "developer_name": "SHOTS_TOTAL",
                    "model_type": "statistic",
                    "stat_group": "offensive"
                }
            },
            {
                "id": 154543030,
                "fixture_id": 19134600,
                "type_id": 80,
                "participant_id": 9,
                "data": {
                    "value": 566
                },
                "location": "home",
                "type": {
                    "id": 80,
                    "name": "Passes",
                    "code": "passes",
                    "developer_name": "PASSES",
                    "model_type": "statistic",
                    "stat_group": "overall"
                }
            },
            {
                "id": 154541889,
                "fixture_id": 19134600,
                "type_id": 86,
                "participant_id": 6,
                "data": {
                    "value": 7
                },
                "location": "away",
                "type": {
                    "id": 86,
                    "name": "Shots On Target",
                    "code": "shots-on-target",
                    "developer_name": "SHOTS_ON_TARGET",
                    "model_type": "statistic",
                    "stat_group": "offensive"
                }
            },
            {
                "id": 154541880,
                "fixture_id": 19134600,
                "type_id": 86,
                "participant_id": 9,
                "data": {
                    "value": 5
                },
                "location": "home",
                "type": {
                    "id": 86,
                    "name": "Shots On Target",
                    "code": "shots-on-target",
                    "developer_name": "SHOTS_ON_TARGET",
                    "model_type": "statistic",
                    "stat_group": "offensive"
                }
            },
            {
                "id": 154543137,
                "fixture_id": 19134600,
                "type_id": 56,
                "participant_id": 9,
                "data": {
                    "value": 19
                },
                "location": "home",
                "type": {
                    "id": 56,
                    "name": "Fouls",
                    "code": "fouls",
                    "developer_name": "FOULS",
                    "model_type": "statistic",
                    "stat_group": "defensive"
                }
            },
            {
                "id": 154511651,
                "fixture_id": 19134600,
                "type_id": 45,
                "participant_id": 9,
                "data": {
                    "value": 58
                },
                "location": "home",
                "type": {
                    "id": 45,
                    "name": "Ball Possession %",
                    "code": "ball-possession",
                    "developer_name": "BALL_POSSESSION",
                    "model_type": "statistic",
                    "stat_group": "overall"
                }
            },
            {
                "id": 154511652,
                "fixture_id": 19134600,
                "type_id": 45,
                "participant_id": 6,
                "data": {
                    "value": 42
                },
                "location": "away",
                "type": {
                    "id": 45,
                    "name": "Ball Possession %",
                    "code": "ball-possession",
                    "developer_name": "BALL_POSSESSION",
                    "model_type": "statistic",
                    "stat_group": "overall"
                }
            },
            {
                "id": 154461826,
                "fixture_id": 19134600,
                "type_id": 42,
                "participant_id": 6,
                "data": {
                    "value": 9
                },
                "location": "away",
                "type": {
                    "id": 42,
                    "name": "Shots Total",
                    "code": "shots-total",
                    "developer_name": "SHOTS_TOTAL",
                    "model_type": "statistic",
                    "stat_group": "offensive"
                }
            },
            {
                "id": 154543328,
                "fixture_id": 19134600,
                "type_id": 80,
                "participant_id": 6,
                "data": {
                    "value": 427
                },
                "location": "away",
                "type": {
                    "id": 80,
                    "name": "Passes",
                    "code": "passes",
                    "developer_name": "PASSES",
                    "model_type": "statistic",
                    "stat_group": "overall"
                }
            }
        ]
    },
    "subscription": [
        {
            "meta": {
                "trial_ends_at": "2024-10-16 14:50:45",
                "ends_at": null,
                "current_timestamp": 1734485131
            },
            "plans": [
                {
                    "plan": "Enterprise plan (loyal)",
                    "sport": "Football",
                    "category": "Advanced"
                },
                {
                    "plan": "Enterprise Plan",
                    "sport": "Cricket",
                    "category": "Standard"
                },
                {
                    "plan": "Formula One",
                    "sport": "Formula One",
                    "category": "Standard"
                }
            ],
            "add_ons": [
                {
                    "add_on": "All-in News API",
                    "sport": "Football",
                    "category": "News"
                },
                {
                    "add_on": "pressure index add-on",
                    "sport": "Football",
                    "category": "Default"
                },
                {
                    "add_on": "Enterprise Plan Predictions",
                    "sport": "Football",
                    "category": "Predictions"
                },
                {
                    "add_on": "xG Advanced",
                    "sport": "Football",
                    "category": "Expected"
                }
            ],
            "widgets": [
                {
                    "widget": "Sportmonks Widgets",
                    "sport": "Football"
                }
            ]
        }
    ],
    "rate_limit": {
        "resets_in_seconds": 2791,
        "remaining": 2995,
        "requested_entity": "Fixture"
    },
    "timezone": "UTC"
}

Chapter 3.0 Retrieving only required values.

In this chapter, we modify our code to retrieve only the needed values and include a line naming the home and away teams.

import groovy.json.JsonSlurper

def fetchData(apiUrl) {
    try {
        // Open the URL connection
        def url = new URL(apiUrl)
        HttpURLConnection connection = (HttpURLConnection) url.openConnection()
        connection.setRequestMethod("GET")
        connection.setConnectTimeout(5000)
        connection.setReadTimeout(5000)

        // Check for a successful response
        if (connection.responseCode == 200) {
            // Parse the JSON response
            def response = connection.inputStream.text
            def json = new JsonSlurper().parseText(response)

            // Access the fixture data (home and away team)
            def fixtureName = json.data?.name
            if (fixtureName) {
                def teams = fixtureName.split(" vs ")
                def homeTeam = teams[0]?.trim()
                def awayTeam = teams[1]?.trim()
                def header = String.format("%-25s %-40s %-25s", homeTeam, "----- STATS ----", awayTeam)
                println header

                // Access statistics data
                def statistics = json.data?.statistics
                if (statistics) {
                    def statsLines = []
                    statistics.each { stat ->
                        if (stat.location == 'home') {
                            def typeId = stat.type_id
                            def name = stat.type?.name
                            def homeValue = stat.data?.value
                            def awayStat = statistics.find { it.location == 'away' && it.type_id == typeId }
                            def awayValue = awayStat?.data?.value ?: "N/A"

                            // Format the output to align values and names with equal spaces between them
                            def formattedLine = String.format("%-30s %-42s %-30s", homeValue, name, awayValue)
                            statsLines << formattedLine } } // Center-align each stats line relative to the header def headerWidth = header.length() statsLines.each { line ->
                        int padding = Math.max((int) ((headerWidth - line.length()) / 2), 0) // Explicit cast to `int`
                        println " " * padding + line
                    }
                } else {
                    println "No statistics data found in the response."
                }
            } else {
                println "Fixture name not found in the response."
            }
        } else {
            println "Failed to fetch data. HTTP response code: ${connection.responseCode}"
        }
    } catch (Exception e) {
        println "Error: ${e.message}"
    }
}

// API URL
def apiUrl = "https://api.sportmonks.com/v3/football/fixtures/19134600?api_token=API_Token&include=statistics.type&filters=fixtureStatisticTypes:45,86,42,80,56"

// Fetch and print data
fetchData(apiUrl)

Explanation.

Our new code iterates through the statistics for the home and away teams and formats it for neat printing. It also adds the names of both teams right before the stats.

3.1 Creating the Image.

In this section, we will jump through a few hoops to create an image with the text centered properly.

Here is our new piece of code.

import groovy.json.JsonSlurper
import java.awt.Color
import java.awt.Font
import java.awt.Graphics
import java.awt.FontMetrics
import java.awt.image.BufferedImage
import javax.imageio.ImageIO

def fetchData(apiUrl) {
  try {
    // Open the URL connection
    def url = new URL(apiUrl)
    HttpURLConnection connection = (HttpURLConnection) url.openConnection()
    connection.setRequestMethod("GET")
    connection.setConnectTimeout(5000)
    connection.setReadTimeout(5000)

    // Check for a successful response
    if (connection.responseCode == 200) {
      // Parse the JSON response
      def response = connection.inputStream.text
      def json = new JsonSlurper().parseText(response)

      // Access the fixture data (home and away team)
      def fixtureName = json.data?.name
      if (fixtureName) {
        def teams = fixtureName.split(" vs ")
        def homeTeam = teams[0]?.trim()
        def awayTeam = teams[1]?.trim()

        // Access statistics data
        def statistics = json.data?.statistics
        if (statistics) {
          def statsLines = []

          // Add header line to statsLines
          def headerLine = [homeTeam, " TEAM STATS ", awayTeam]
          statsLines << headerLine // Add statistics data to statsLines statistics.each { stat ->
            if (stat.location == 'home') {
              def typeId = stat.type_id
              def name = stat.type?.name
              def homeValue = stat.data?.value?.toString()
              def awayStat = statistics.find { it.location == 'away' && it.type_id == typeId }
              def awayValue = awayStat?.data?.value?.toString() ?: "N/A"

              // Group home value, stat name, and away value together for alignment
              def formattedLine = [homeValue, name, awayValue]
              statsLines << formattedLine } } // Calculate image dimensions based on content int lineHeight = 40 // Space for each line of text int padding = 20 // Padding around the text int imgWidth = 800 // Fixed width for the image int imgHeight = (statsLines.size() * 2 + 2) * lineHeight + 2 * padding // Account for empty lines // Create the image for drawing text BufferedImage img = new BufferedImage(imgWidth, imgHeight, BufferedImage.TYPE_INT_ARGB) Graphics g = img.createGraphics() // Set background to light grey (#F5F5F5) g.setColor(new Color(245, 245, 245)) // Light grey color (hex: #F5F5F5) g.fillRect(0, 0, imgWidth, imgHeight) // Set font color to black g.setColor(Color.BLACK) // Black text color g.setFont(new Font("Courier New", Font.BOLD, 20)) // Draw the header at the top int yPosition = padding + lineHeight // Starting position after padding // Draw statistics centered under the header yPosition += 2 * lineHeight // Start position after header and spacing statsLines.each { row ->
            // Calculate the exact x position for each stat (home stat, stat name, away stat)
            int homeStatX = (imgWidth / 4) - g.getFontMetrics().stringWidth(row[0]) / 2
            int statNameX = (imgWidth / 2) - g.getFontMetrics().stringWidth(row[1]) / 2
            int awayStatX = (imgWidth * 3 / 4) - g.getFontMetrics().stringWidth(row[2]) / 2

            // Draw each stat under the header columns
            g.drawString(row[0], homeStatX, yPosition) // Home stat column
            g.drawString(row[1], statNameX, yPosition) // Stat name column
            g.drawString(row[2], awayStatX, yPosition) // Away stat column

            yPosition += 2 * lineHeight // Extra space for empty line between stats
          }

          // Save the image as a PNG file
          File outputFile = new File("match_stats_image.png")
          ImageIO.write(img, "PNG", outputFile)
          println "Image has been saved as match_stats_image.png."
        } else {
          println "No statistics data found in the response."
        }
      } else {
        println "Fixture name not found in the response."
      }
    } else {
      println "Failed to fetch data. HTTP response code: ${connection.responseCode}"
    }
  } catch (Exception e) {
    println "Error: ${e.message}"
  }
}

// Helper function to draw centered text
def drawCenteredString(Graphics g, String text, int y, int width) {
  FontMetrics metrics = g.getFontMetrics()
  int textWidth = metrics.stringWidth(text)
  int startX = (width - textWidth) / 2
  g.drawString(text, startX, y)
}

// API URL
def apiUrl = "https://api.sportmonks.com/v3/football/fixtures/19134600?api_token=API_Token&include=statistics.type&filters=fixtureStatisticTypes:45,86,42,80,56"

// Fetch and generate image
fetchData(apiUrl)

Image has been saved as match_stats_image.png.

Explanation.

An image is created in memory with a specific width and height in the BufferedImage. The BufferedImage.TYPE_INT_ARGB specifies that the image will support transparency and RGB colour channels.

Graphics: This object provides the drawing tools to render text, shapes, or other graphics onto the image.

g.setColor(new Color(245, 245, 245)); sets the background colour to light grey using the Colour object. The fillRect method fills the entire image area with the chosen colour (starting at (0, 0) and covering the entire width and height).

Saving the Image: After drawing all the text, the image is saved as a PNG file to disc with the name match_stats_image.png. Ensure you have the necessary permission to save to the folder on your workstation.

The image is saved to the same folder where you have created your Groovy file.

CHAPTER 5: Adding Your Logo.

In this chapter, our final, we shall add a logo to the generated image so it appears branded. Just like you might have guessed, we shall use our company’s logo, Sportmonks. However, there will be no need to let you know that you are at liberty to replace this with yours.

// Import statements remain unchanged
import groovy.json.JsonSlurper
import java.awt.Color
import java.awt.Font
import java.awt.Graphics
import java.awt.image.BufferedImage
import javax.imageio.ImageIO
import java.io.File

def fetchData(apiUrl) {
    try {
        // Open the URL connection
        def url = new URL(apiUrl)
        HttpURLConnection connection = (HttpURLConnection) url.openConnection()
        connection.setRequestMethod("GET")
        connection.setConnectTimeout(5000)
        connection.setReadTimeout(5000)

        // Check for a successful response
        if (connection.responseCode == 200) {
            // Parse the JSON response
            def response = connection.inputStream.text
            def json = new JsonSlurper().parseText(response)

            // Access the fixture data (home and away team)
            def fixtureName = json.data?.name
            if (fixtureName) {
                def teams = fixtureName.split(" vs ")
                def homeTeam = teams[0]?.trim()
                def awayTeam = teams[1]?.trim()

                // Access statistics data
                def statistics = json.data?.statistics
                if (statistics) {
                    def statsLines = []

                    // Add header line to statsLines
                    def headerLine = [homeTeam, " TEAM STATS ", awayTeam]
                    statsLines << headerLine // Add statistics data to statsLines statistics.each { stat ->
                        if (stat.location == 'home') {
                            def typeId = stat.type_id
                            def name = stat.type?.name
                            def homeValue = stat.data?.value?.toString()
                            def awayStat = statistics.find { it.location == 'away' && it.type_id == typeId }
                            def awayValue = awayStat?.data?.value?.toString() ?: "N/A"

                            // Group home value, stat name, and away value together for alignment
                            def formattedLine = [homeValue, name, awayValue]
                            statsLines << formattedLine } } // Calculate image dimensions based on content int lineHeight = 40 // Space for each line of text int padding = 20 // Padding around the text int gapAfterLogo = 60 // Reduced gap between the logo and the content int imgWidth = 720 // Fixed width for the image int imgHeight = (statsLines.size() * 2 + 4) * lineHeight + 2 * padding + gapAfterLogo // Adjust height // Create the image for drawing text BufferedImage img = new BufferedImage(imgWidth, imgHeight, BufferedImage.TYPE_INT_ARGB) Graphics g = img.createGraphics() // Set background to light grey g.setColor(new Color(245, 245, 245)) // Light grey color g.fillRect(0, 0, imgWidth, imgHeight) // Set font color and style g.setColor(Color.BLACK) g.setFont(new Font("Courier New", Font.BOLD, 20)) // Load and draw the logo with aspect ratio preserved int logoHeight = 200 // Maximum height for the logo int logoWidth = 200 // Maximum width for the logo int actualLogoHeight = 0 // Store the actual logo height try { File logoFile = new File("logo.png") // Assume logo.png is in the same directory if (logoFile.exists()) { BufferedImage logo = ImageIO.read(logoFile) int originalLogoWidth = logo.getWidth() int originalLogoHeight = logo.getHeight() // Scale logo to fit within the defined width and height, maintaining aspect ratio double scaleFactor = Math.min(logoWidth / (double) originalLogoWidth, logoHeight / (double) originalLogoHeight) int scaledLogoWidth = (int) (originalLogoWidth * scaleFactor) actualLogoHeight = (int) (originalLogoHeight * scaleFactor) // Center the logo horizontally int logoX = (imgWidth / 2) - (scaledLogoWidth / 2) int logoY = padding // Place the logo at the top g.drawImage(logo, logoX, logoY, scaledLogoWidth, actualLogoHeight, null) } else { println "Logo file not found in the current directory. Skipping logo." } } catch (Exception e) { println "Error loading logo: ${e.message}" } // Draw the statistics int yPosition = padding + actualLogoHeight + gapAfterLogo // Start right below the logo with reduced gap statsLines.each { row ->
                        int homeStatX = (imgWidth / 4) - g.getFontMetrics().stringWidth(row[0]) / 2
                        int statNameX = (imgWidth / 2) - g.getFontMetrics().stringWidth(row[1]) / 2
                        int awayStatX = (imgWidth * 3 / 4) - g.getFontMetrics().stringWidth(row[2]) / 2

                        g.drawString(row[0], homeStatX, yPosition)
                        g.drawString(row[1], statNameX, yPosition)
                        g.drawString(row[2], awayStatX, yPosition)

                        yPosition += 2 * lineHeight
                    }

                    // Save the image
                    File outputFile = new File("match_stats_image.png")
                    ImageIO.write(img, "PNG", outputFile)
                    println "Image has been saved as match_stats_image.png."
                } else {
                    println "No statistics data found in the response."
                }
            } else {
                println "Fixture name not found in the response."
            }
        } else {
            println "Failed to fetch data. HTTP response code: ${connection.responseCode}"
        }
    } catch (Exception e) {
        println "Error: ${e.message}"
    }
}

// Prompt the user for the fixture ID
println "Please enter the fixture ID:"
def fixtureId = System.console()?.readLine() ?: new Scanner(System.in).nextLine()

// API URL
def apiUrl = "https://api.sportmonks.com/v3/football/fixtures/${fixtureId}?api_token=API_Token&include=statistics.type&filters=fixtureStatisticTypes:45,86,42,80,56"

// Fetch and generate image
fetchData(apiUrl)

Please enter the fixture ID:
19154581
Image has been saved as match_stats_image.png.

In our new piece of code, we defined the dimensions by setting a maximum width and height (200×200) for the logo and initialised actualLogoHeight to track its scaled height. We then loaded the logo named ‘logo.png’ from the current directory, ensuring it exists.

We scaled it proportionally and positioned it before drawing the logo on our image. We also made slight adjustments to ensure the content is spaced moderately.

CONCLUSION.

Do you think you can make further improvements to the piece of code? How about adding club logos to replace the club names? If you think you are ready for the challenge, don’t hesitate to give it a try.

There’s plenty more you can do with Sportmonks Football API. Why don’t you take a look at our official documentation to know more?
